AP-700 series 300w-2ooow(660wh~2400wh) pure sine wave MPPT and PWM photovoltaic input ALP MOBILE ALL-IN-ONE ESS with lead-acid battery
- Integration of PV Controller and Battery Functions for Convenient and Efficient Use；
- Efficient Solar Charging to Extend Battery Life；
- Pure Sine Wave Output with Strong Load Carrying Capacity；
- Intelligent Charging and Discharging Management to Prolong Battery Life；
- Bright Display Screen for Real-Time Status Monitoring；
- Multiple Protection Functions for Safety and Reliability；
- Adjustable Switching Modes for Flexible Selection.
- Significantly higher cost-performance ratio than similar products on the market. Welcome to inquire via email.

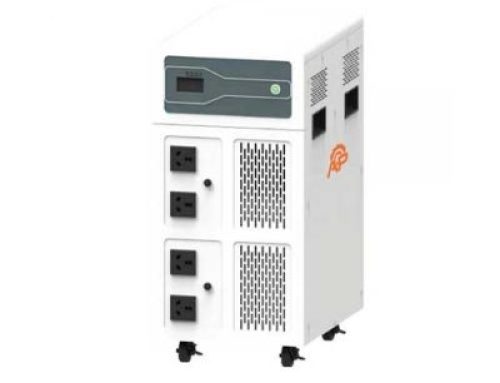

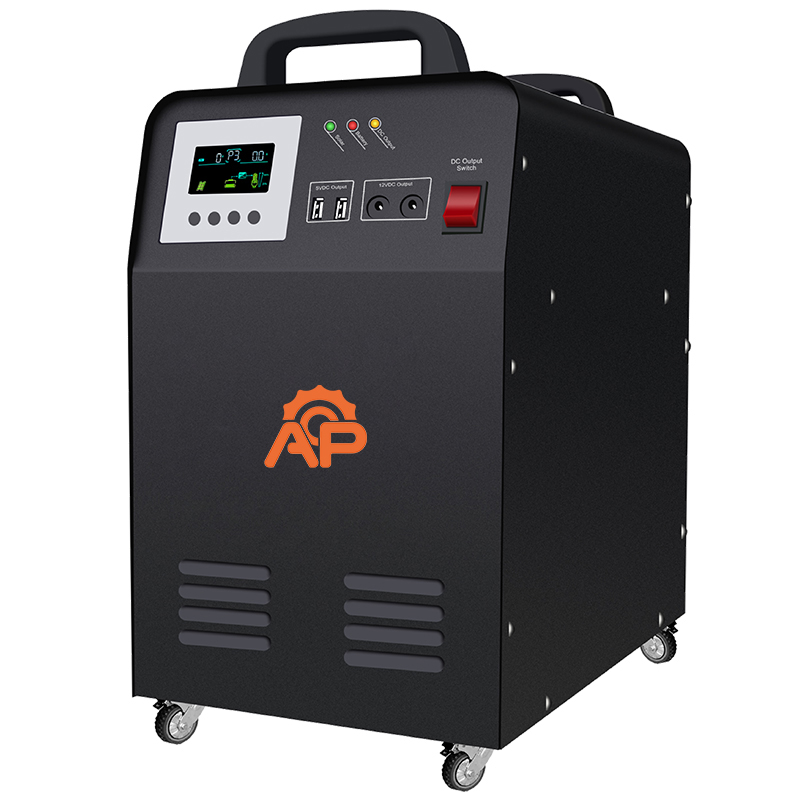

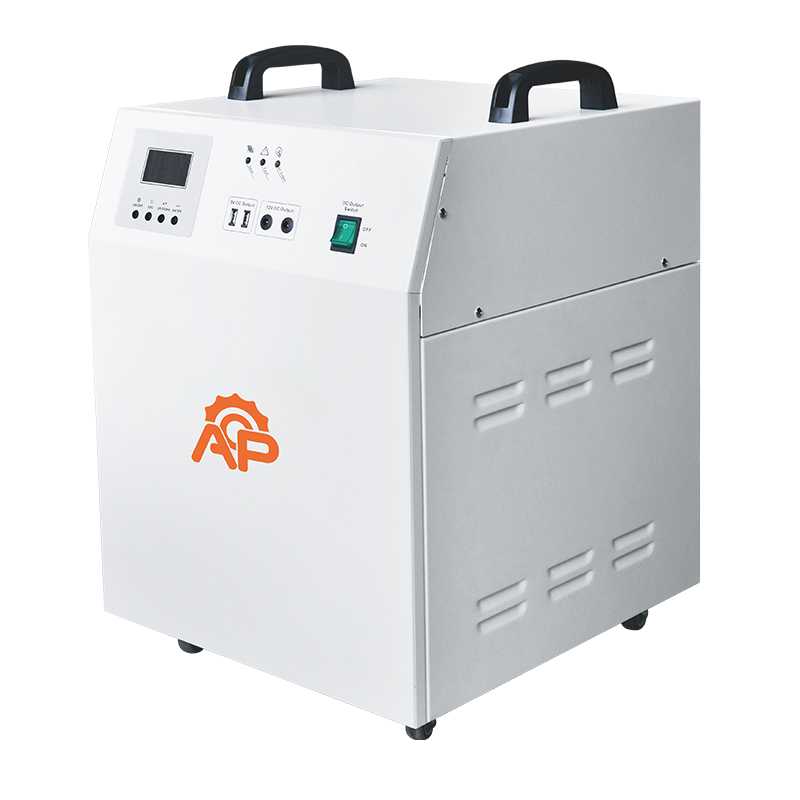

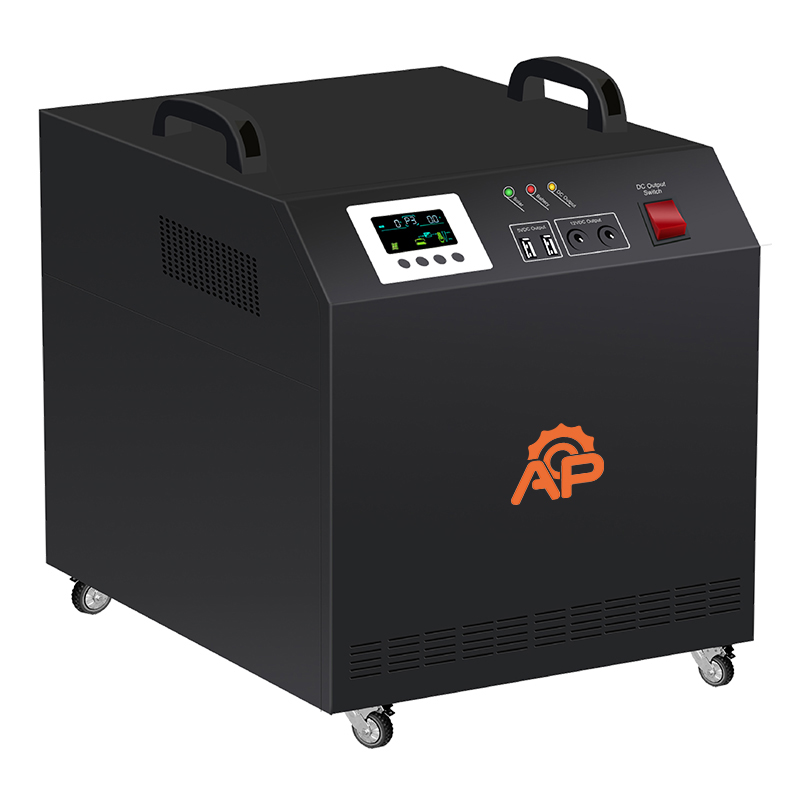

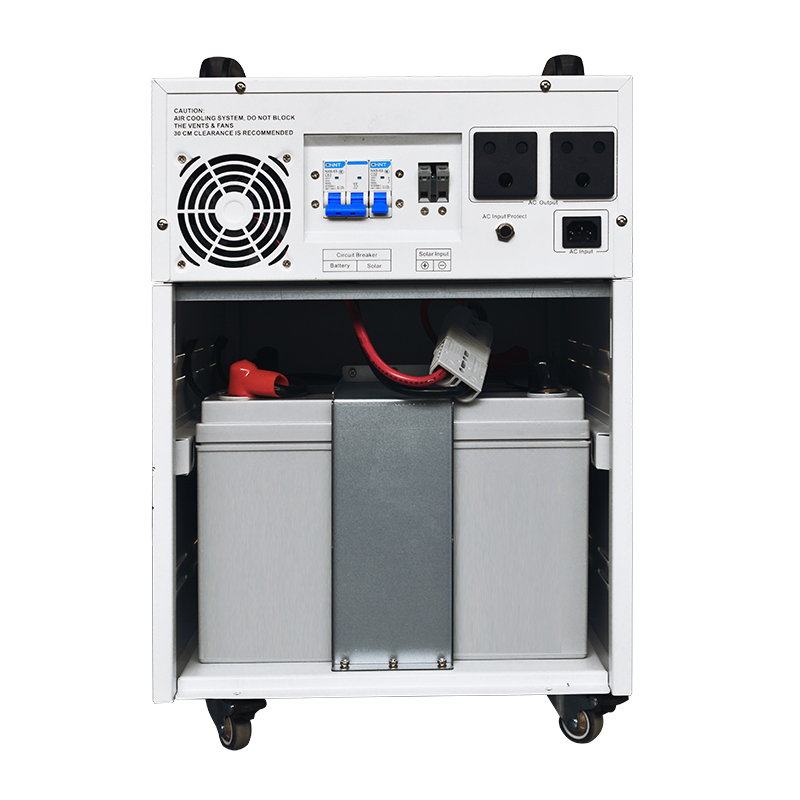

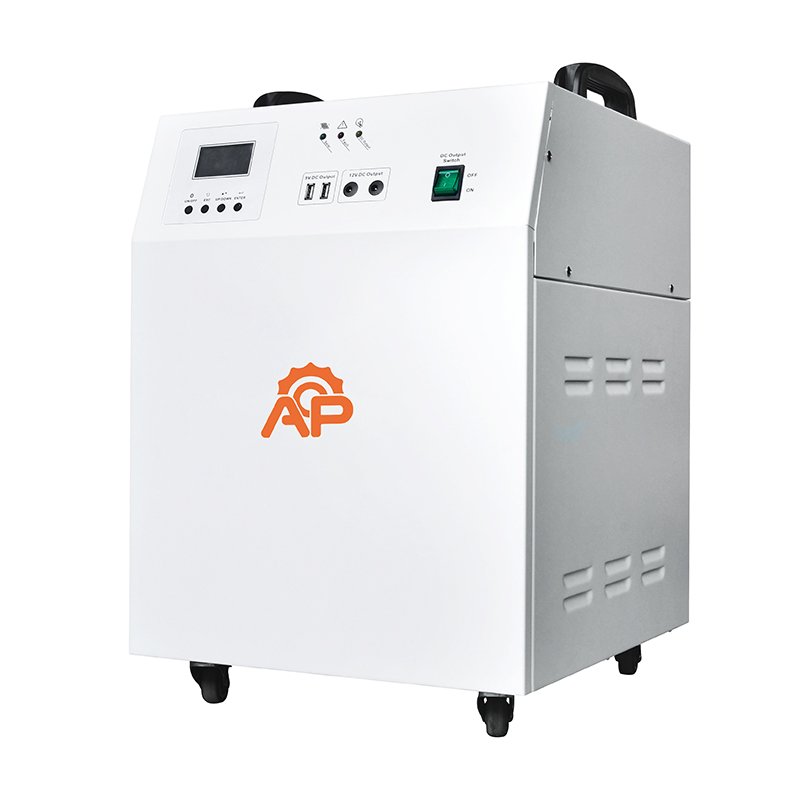

Visual Tour
Product Performance
| Model | AP-705-660 | AP-707-660 | AP-700-1200 | AP-701-2400 | AP-709-4800 |
| Inverter | |||||
| Battery Voltage | 12V | 24V | |||
| In-built battery specification | 55AH | 55AH | 100AH/12V | 100AH/12V*2 | 200AH/12V*2 |
| Rated power | 300W | 500W | 1000W | 1500W | 2000W |
| Output Voltage | 110VAC/220VAC | ||||
| Output Frequency | 50/60Hz | ||||
| Output Waveform | Pure Sine Wave | ||||
| Charge by a mians supply | |||||
| Rated Voltage | 110VAC/220VAC——*（* means an optional function） | ||||
| Charge Current | 6A | 8A | 12A | 15A | 20A |
| Solar Input | |||||
| Maximum Photovoltaic Voltage(VDC) | ≤25V | ≤145V | |||
| Charge Voltage（VDC） | 13.7V | 27.4V | |||
| Rated Charge Current(A) | (PWM)5-10A | (MPPT)30A | (MPPT)60A | ||
| Maximum Power(Wp） | 360Wp | 800Wp | 1600Wp | ||
| Voltage of overcharge protection(VDC) | 14.2V | 28.4V | |||
| Voltage of overcharge recovery(VDC) | 14.0V | 28.0V | |||
| Voltage of floating charge(VDC) | 13.7V | 27.4V | |||
| DC Output | |||||
| Voltage of high-voltage protection(VDC) | 16V | 32V | |||
| Voltage of high-voltage recovery(VDC) | 15.2V | 30.4V | |||
| Voltage of low-voltage recovery(VDC) | 13V | 26V | |||
| Voltage of low-voltage protection(VDC) | 11V | 22V | |||
| 5VDC USB Output Port | 2units/MAX 2A | ||||
| 12VDC Output Port | 2 DC Ports (MAX 2A) | ||||
| Starting Temperature of the exhaust fan | ＞45℃ | ||||
| Ambient Temperature for operation | 0-40℃ | ||||
| Ambient Temperature for storage | -25-55℃ | ||||
| Operation/Storage Conditions | 0-90%（no condensation) | ||||
| External dimensions: D*W*H(mm) | 423*260*453 | 430*380*534 | 555*515*540 | ||
| Packing dimensions: D*W*H(mm) | 520*370*520 | 545*480*620 | 640*600*695 | ||
