Specification
| model | AP-526H | |
|---|---|---|
| Rated battery voltage | 51.2V | |
| Electrical characteristics | rated power | 5000W |
| Nominal capacity | 100Ah | |
| Combination method | 16S1P | |
| cycle life | > 3000 cycles @80%DOD @35°C | |
| Monthly self-discharge | March | |
| Charging efficiency | >97% | |
| Discharge efficiency | >98% | |
| Charging standard | Recommended charging voltage | 57.6V |
| Recommended charging current | 20A | |
| Maximum charging voltage | 58.4V | |
| Maximum charging current | 100A | |
| Discharge standard | Recommended discharge current | 50A |
| Maximum discharge current | 100A | |
| Discharge termination voltage | 43.2V | |
| Battery specifications | Battery size (W*D*H)(mm) | 505* 480* 224MM |
| Packing size (W*D*H)(mm) | 560* 535* 324MM | |
| Net weight(kg) | 44.5KG | |
| Gross weight (kg) | 48KG | |
| Protection level | IP30 | |
| shell material | Metal box | |
| other | Charging temperature range | 0°C~45°C |
| Discharge temperature range | -20°C~60°C | |
| storage temperature | 0°C~40°C | |
| humidity | 10%-85% relative humidity (no condensation) | |

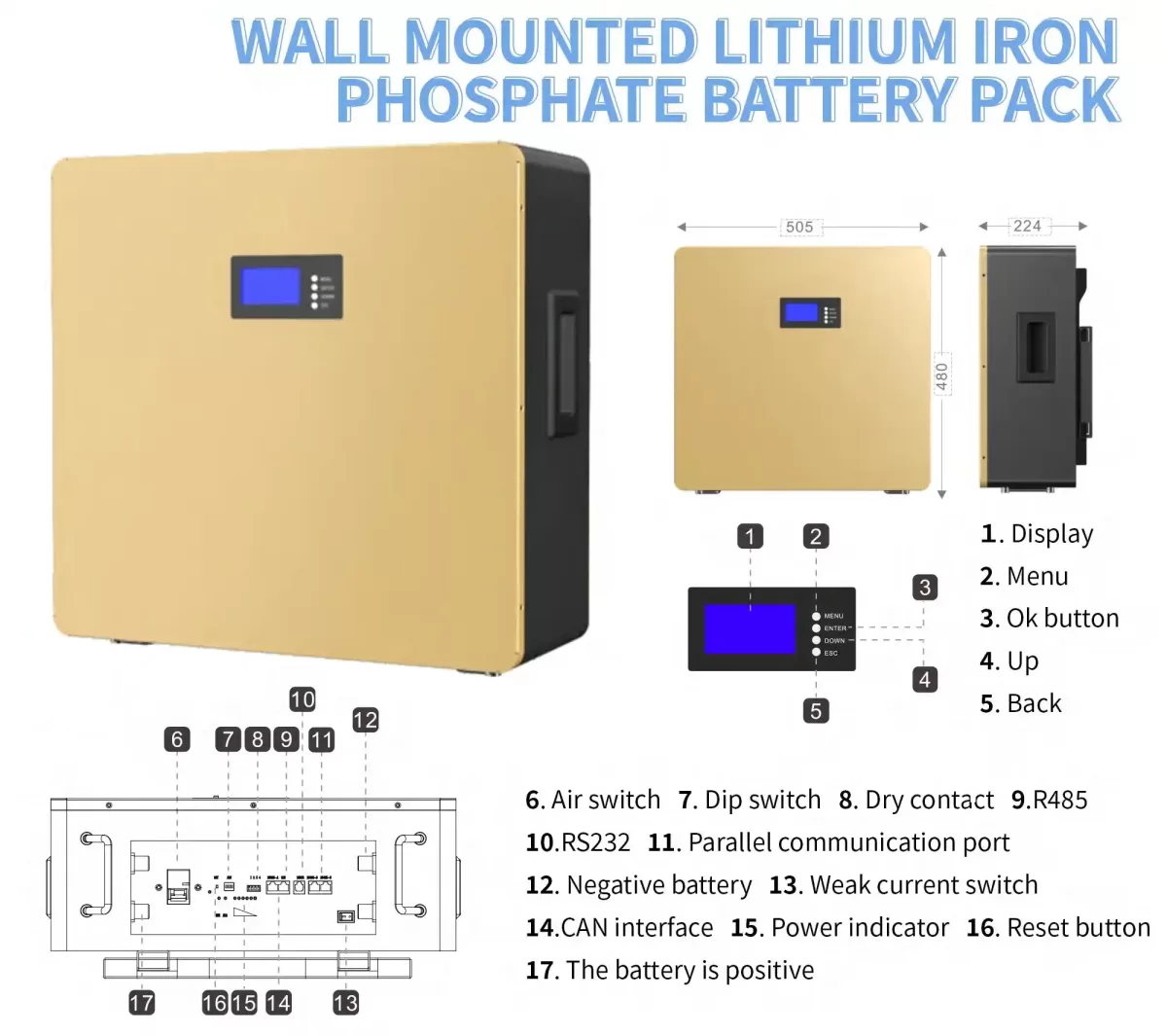

Product Introduction
Longer Cycle Life:
The battery pack has a cycle life of up to 5,000 times, which is five times longer than that of lead-acid batteries, effectively saving on replacement and maintenance costs.
Lighter Weight:
With a high energy density, the weight is only 40% of that of lead-acid batteries.
Higher Discharge Rate:
Offers twice the discharge rate of lead-acid batteries while maintaining over 95% capacity.
Wider Temperature Range:
Operates in a broad temperature range from -20℃ to 60℃. Supports CAN communication, RS232 communication, and dual-channel (RS485) communication.
Support for Multiple Battery Packs in Parallel:
Enables the use of several battery packs together for increased power and capacity.
Wide Range of Applications:
Suitable for indoor/wall-mounted installations, home energy storage systems, and UPS backup power, providing electricity for residences, public facilities, and small factories.

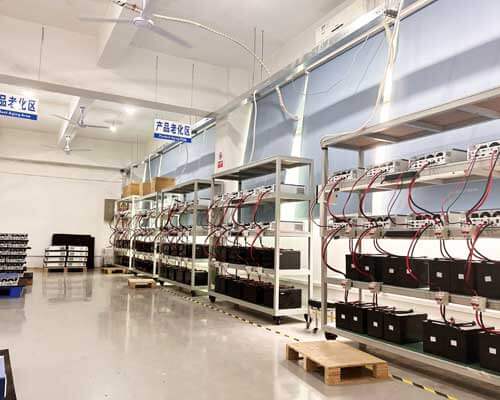

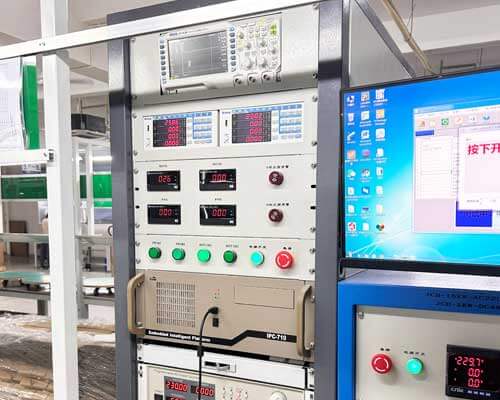

Our Factory
