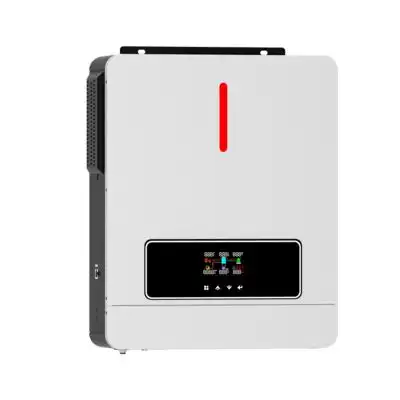

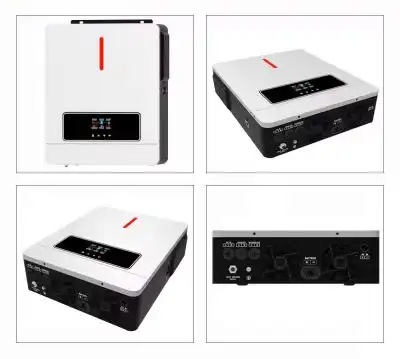

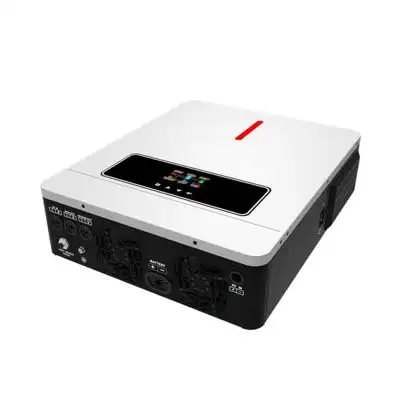

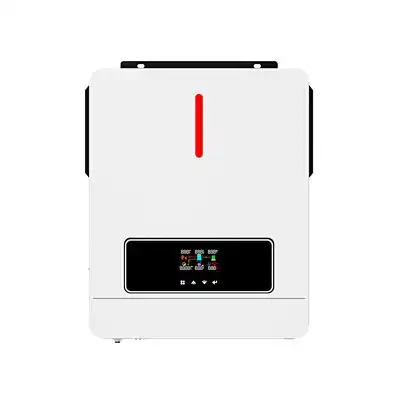

3.6-6.2 kW hybrid on/off grid inverter & 60Vdc & 6200/6500W MPPT
Pure sine wavesolarinverter(on/off Grid)
Output power factor 1.0
Built-in 120A(for3.6KW/6.2KW)/140A(for4.2KW)
MPPT solar charge:max 6200w(for 3.6KW/4.2KW)max 6500w(for 6.2KW)
WIFl&GPRS availabe for lOS and Android
High PV input voltage range (90~500VDC)
Inverter can run without battery
One-key restoratin to factory SettingsBuilt-in anti-dust kit for harsh environment
Built-in Lithium battrty automatic activation
Smart battery charge design to optimize battery life
Parameter Table
model | AP-2P3A | AP-2P4A | AP-2P6A |
---|---|---|---|
Phase | 1 phase | ||
Maximum photovoltaic input power | 6200W | 6200W | 6500W |
Rated output power | 3600 Watts/3600 VA | 4200 Watts/4200 VA | 6200 Watts/6200 VA |
Maximum solar charging current | 120A | ||
Grid-connected operation | |||
Photovoltaic input (DC) | |||
Nominal DC voltage/Maximum DC voltage | 360VDC/500VDC | ||
Starting voltage/initial supply voltage | 60VDC/90VDC | ||
MPPT voltage range | 60~450VDC | ||
Maximum input current | 1/18A | 1/22A | |
Grid output (AC) | |||
Nominal output voltage | 220/230/240VAC | ||
Output voltage range | 195.5~253VAC | ||
Nominal output current | 15.7A | 18.2A | 27.0A |
power factor | >0.99 | ||
efficiency | |||
Maximum conversion efficiency (DC/AC) | 98% | ||
Two-way load output power | |||
Fully loaded | 3600W | 4200W | 6200W |
Maximum main load | 3600W | 4200W | 6200W |
Maximum secondary load (battery mode) | 1200W | 1400W | 2067W |
Main load cut-off voltage | 26VDC | 26VDC | 52VDC |
Main load return voltage | 27V DC | 27V DC | 54VDC |
Off-grid operation | |||
AC input | |||
AC starting voltage/auto-restart voltage | 120-140VAC/180VAC | ||
Acceptable input voltage range | 90-280VAC or 170-280VAC | ||
Frequency Range | 50/60 Hz | ||
Maximum AC input current | 30A | 30A | 40A |
Photovoltaic input (DC) | |||
Nominal DC voltage/Maximum DC voltage | 360/500 DC | ||
MPPT voltage range | 60~450VDC | ||
Maximum input current | 1/18A | 1/22A | |
Battery mode output (AC) | |||
Nominal output voltage | 220/230/240VAC | ||
Output waveform | pure sine wave | ||
Efficiency (DC to AC) | 94% | ||
charger | |||
Nominal DC voltage | 24VDC | 48VDC | |
Maximum solar charging current | 120A | 140A | 120A |
Maximum AC charging current | 100A | ||
Maximum charging current | 120A | 140A | 120A |
Mixed operation | |||
Photovoltaic input (DC) | |||
Nominal DC voltage/Maximum DC voltage | 360/500 DC | ||
Starting voltage/initial supply voltage | 90VDC/120VDC | ||
MPPT voltage range | 60~450VDC | ||
Maximum input current | 1/18A | 1/22A | |
Grid output (AC) | |||
Nominal output voltage | 220/230/240VAC | ||
Output voltage range | 195.5~253VAC | ||
Nominal output current | 15.7A | 18.2A | 27.0A |
AC input | |||
AC starting voltage/auto-restart voltage | 120-140VAC/180VAC | ||
Acceptable input voltage range | 90-280VAC or 170-280VAC | ||
Maximum AC input current | 30A | 30A | 40A |
Maximum AC charging current | 100A | ||
General parameters | |||
physics | |||
Dimensions, depth x width x height (mm) | 420*350*110 | ||
Carton size, DXWXH (mm) | 500*415*180 | ||
Net weight (kg) | 8.0 | 8.0 | 8.9 |
Gross weight (kg) | 9.0 | 9.0 | 10.0 |
interaction | |||
Communication port | RS232/RS485/WIFI/GPRS/lithium battery | ||
environment | |||
humidity | 5% to 95% relative humidity (non-condensing) | ||
Operating temperature | -10℃~50℃ | ||
standard | |||
Compliance and security | CE |
